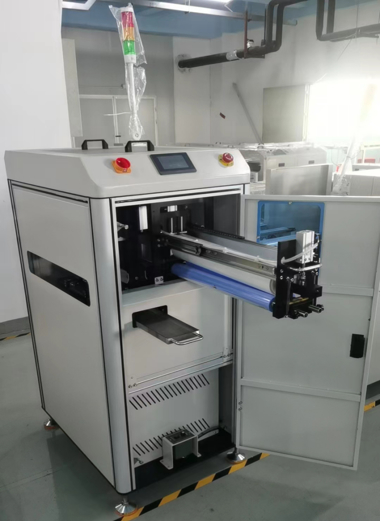

PBC Board Cleaning Machine (Model CHT-QJ-510) MES System & System Width Adjustment
PBC Board Cleaning Machine
First, the characteristics of the equipment:
1 PLC control system
2 control panel for the LED true color touch screen
3 step distance can be divided into four kinds (10,20,30,40mm)
4 with suction and feeding board function
5 with anti-jamming special anti-dull structure
6 direction can be selected from left to right or right to left
Technical parameters and specifications
1 Board loading time approx. 6 seconds
2 Bin change time approx. 20 seconds
3 Power supply and load 100-230V AC (customer specified) single, max. 300 VA
4 Pneumatic pressure and flow rate 4-6 bar, max. 10 liters/min
5 Conveyor height 920±20mm (customer specified)
6 Conveyor direction left-right or right-left (optional)
7 PCB thickness Thinnest 0.4 mm 8 Number of boards 1 upper conveyor, 1 lower conveyor (customer specified) 9 Step selection 1-4 (mm steps)
10 PCB size 50*50-590*510mm 11 Outer type conveyor 50*50-590*510mm mm
8 Number of bins Upper conveyor: 1, lower conveyor: 1 (customer-specific)
9 Step selection 1-4 (mm steps)
10 PCB size 50*50-590*510mm
11 External dimensions (L*W*H) 1835*1060*1700
12 Approximate weight (kg) 245KG
