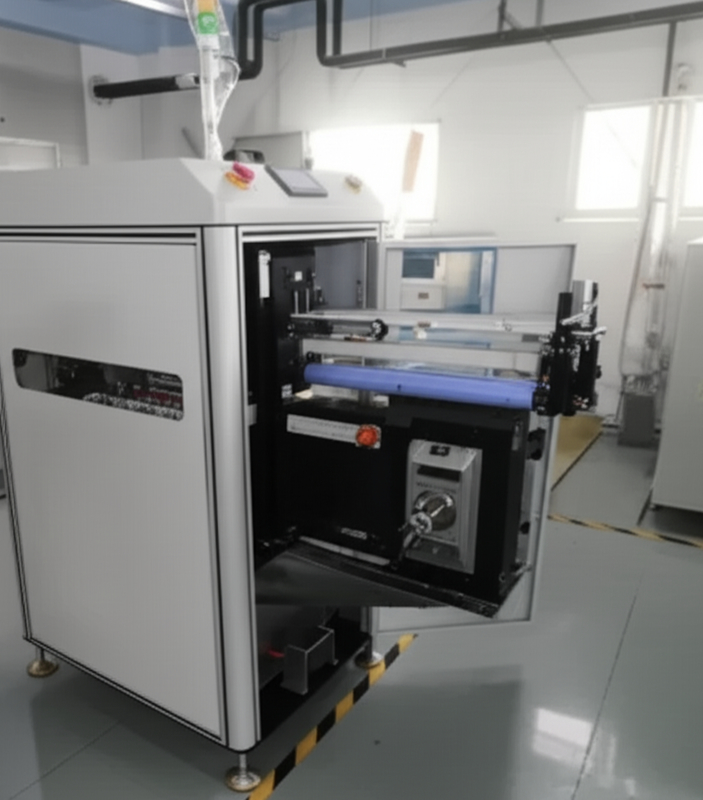

PCB Cleaning Machine CHT-QJ-510 with MES System & Width Adjustment
PCB Cleaning Machine CHT-QJ-510 with MES System & Width Adjustment
PCB Cleaning Machine CHT-QJ-510 with MES System & Width Adjustment

PCB Cleaning Machine CHT-QJ-510 with MES System & Width Adjustment

Product Details

Place of Origin: China

Model Number: CHT-BGA-1000C

Payment & Shipping Terms

Minimum Order Quantity: NEGOTIATION

Price: NEGOTIATION

Packaging Details: NEGOTIATION

Delivery Time: 20 work days

Payment Terms: T/T

Supply Ability: 10per day

Get Best Price

Product Details

Product Description
Highlight:

PCB cleaning machine with MES system

,

automated PCB cleaning machine with width adjustment

,

industrial PCB cleaning machine for production lines

PCB Size:
50*50-590*510mm
PCB Direction Of Transfer:
L-R/R-L
PCB Transport Height:
900±20mm
Material Box Sizes(L*W*H):
50*80*100-300*150*400
Weight:
170Kg
Boundaty Dimension(L*W*H):
L650*W875*H1250mm
PCB Size:
50*50-590*510mm
PCB Direction Of Transfer:
L-R/R-L
PCB Transport Height:
900±20mm
Material Box Sizes(L*W*H):
50*80*100-300*150*400
Weight:
170Kg
Boundaty Dimension(L*W*H):
L650*W875*H1250mm
PCB Cleaning Machine CHT-QJ-510 with MES System & Width Adjustment
PBC Board Cleaning Machine (Model CHT-QJ-510) MES System & System Width Adjustment
Product Attributes
Attribute Value
PCB Size 50*50-590*510mm
PCB Direction of transfer L-R/R-L
PCB Transport Height 900±20mm
Material Box Sizes(L*W*H) 50*80*100-300*150*400
Weight 170Kg
Boundary Dimension(L*W*H) L650*W875*H1250mm
Product Description
PBC Board Cleaning Machine Features:
  • PLC control system for precise operation
  • LED true color touch screen control panel
  • Adjustable step distance with four settings (10, 20, 30, 40mm)
  • Integrated suction and feeding board function
  • Special anti-jamming and anti-dull structure
  • Flexible transfer direction (left-right or right-left)
Technical Specifications
Board loading time: approx. 6 seconds
Bin change time: approx. 20 seconds
Power supply and load: 100-230V AC (customer specified) single, max. 300 VA
Pneumatic pressure and flow rate: 4-6 bar, max. 10 liters/min
Conveyor height: 920±20mm (customer specified)
Conveyor direction: left-right or right-left (optional)
PCB thickness: Thinnest 0.4 mm
Number of boards: 1 upper conveyor, 1 lower conveyor (customer specified)
Step selection: 1-4 (mm steps)
PCB size: 50*50-590*510mm
External dimensions (L*W*H): 1835*1060*1700
Approximate weight: 245KG
