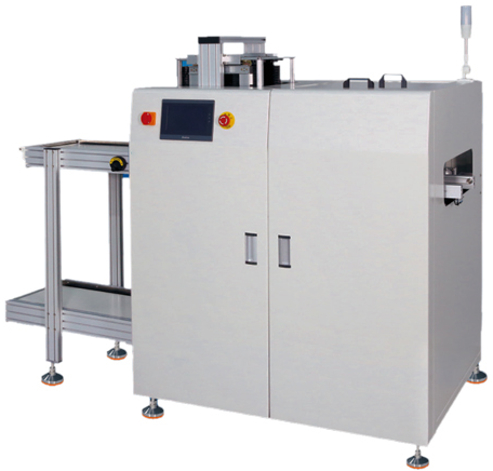

Suction plate feeder (Model: CHT-S350S) MES system & system width adjustment

Suction plate feeder

Main Functions:

1. Used in SMT production line and laser marking, labeling production line at the beginning, after receiving the signal from the lower computer to board, one by one, one by one, the glossy PCB board will be sent out to the production line.

2. The suction cup requires magnet adsorption to facilitate the adjustment of position, PCB board in front of the board.

Features of the equipment:

1 PLC control system

2 The control panel is a true color LED touch screen

3 The step distance can be divided into four kinds (10,20,30,40mm)

4 It has the function of sucking boards and feeding boards

5 It has the special anti-dulling structure of preventing boards from jamming

6 The direction can be selected from left to right or right to left

II. Technical parameters and specifications

1 The board loading time is about 6 seconds

2 The material box changing time is about 20 seconds

3 The power supply and the load 100- 230V AC (customer specified) single item 4 Air pressure and flow 4 6bar, maximum 10 liters/minute 5 Transfer height 920±20mm (customer specified) 6 Transfer direction left-right or single item 300 VA 230V AC (customer-specified) single, max. 300 VA

4 Air pressure and flow rate 4-6 bar, max. 10 l/min

5 Conveyor height 920±20 mm (customer-specified)

6 Conveyor direction left-right or right-left (optional)

7 PCB thickness Thickness Thickness max. 0.4 mm

8 Number of bins Upper conveyor: 1, Lower conveyor: 1 (customer-specified)

9 Selection of the step size from 1 to 4 (mm steps) )

10 PCB size 50*50-590*510mm

11 External dimensions (L*W*H) 1835*1060*1700

12 Approximate weight (kg) 245KG
