Highlight:
SMT Dual Register Machine
, PLC Control Dual Register Machine

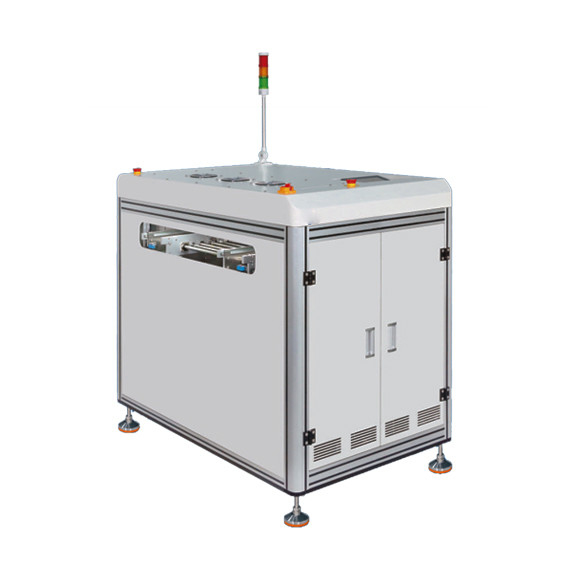

PLC Control SMT Dual Register Machine With HMl Operation System
Semiconductor,production line board board device/ Dual Register Machine
Product characteristics
1, HMl operation system interface control operation which are very simple and convenient.
2, PLC control system, multiple electrical circuit protection design which are security and stability.
3, There are 2 boxes in the temporary storage area, and 30 pitches per box are avallable for stopping.
4, Integrate multiple functions, first-in, first-out, advanced-ast-out. and direct-throuoh NG/OK.
5, Servo positioning system, high positioning accuracy, fast lifting speed, high production efficiency,and large amount of storage.
6, Standard SMEMAsiqnal communicatio.
Product Technical Parameters
1, Board capacity:20-30pcs,Canbeusad for multi-purpose selection of NG/OKstorage boards.
2, Maximum load:1.5kg/PCB
3, Cycle time:About 12 Seconds
4, Step selection:20,40mm or specified by customer
5, Power supply and electricload:220V(AC,SP)900V/Amax
6, Board thickness:Min.0.6mm
