Name: SMT Automatic Vacuum Bare Board Loader For Circuit Boards
Brand: Shenzhen Jingji Technology Co., Ltd.
SKU: CHT-CVP-406T
Availability: InStock

Product Details

Place of Origin: China

Model Number: CHT-CVP-406T

Payment & Shipping Terms

Minimum Order Quantity: NEGOTIATION

Price: NEGOTIATION

Packaging Details: NEGOTIATION

Delivery Time: 20 work days

Payment Terms: T/T

Supply Ability: 10per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                SMT Vacuum Bare Board Loader, Automatic Vacuum Bare Board Loader, Circuit Boards Automatic Board Loader


PCB SizeS:	CHT-330: 8050-390330mm CHT-460: 8050-510460mm	PCB Direction Of Transfer:	L-R/R-L
PCB Transport Height:	900±20mm	Weight:	CHT-330:195KG CHT-460:205KG
Boundaty Dimension(LWH):	CHT-460:82010101235MM CHT-330:7008801235MM L-CHT:194010001120MM XL-CHT: 194010701120MM

PCB SizeS:	CHT-330: 8050-390330mm CHT-460: 8050-510460mm
PCB Direction Of Transfer:	L-R/R-L
PCB Transport Height:	900±20mm
Weight:	CHT-330:195KG CHT-460:205KG
Boundaty Dimension(LWH):	CHT-460:82010101235MM CHT-330:7008801235MM L-CHT:194010001120MM XL-CHT: 194010701120MM

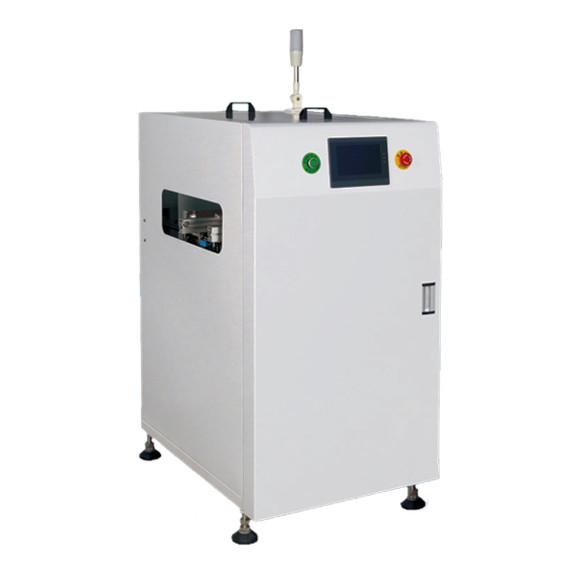

SMT Automatic Vacuum Bare Board Loader For Circuit Boards

Automatic Loader

Description:

This machine is used for automatically send circuit boards to the production line.

Features:

1. This machine is a board loading device for circuit boards in semiconductor production lines.

2. Adopt PCL control and colorful human-machine interface operation.

3. Adoption of cylinder clamping plate, compatible with a variety of materials of circuit boards.

4. Auxiliary positioning brake system, precise positioning, fast lifting speed, high productivity

5. Multiple electrical distribution circuit protection, safe and reliable

6. Adopting sound and light prompt alarm system, if there is abnormal information, the system will use text prompts, easy to operate and maintain.

7. Uses standard SMEMA signaling communications

Technical Parameters :

1. Time for feed PCBs: Approx. 8 seconds or user-specified time

2. Power supply and electric load:220V(AC),120 VA (SP)max

3. Air pressure and air flow:4-6bar, up to 30L/min

4. Thickness of PCBs:0.6mm min

5. Board maximum capacity: 200pcs(0.6mm thick PCB)
