Highlight:
PCB Dual Magazine Unloader
, SMT Dual Magazine Unloader
, PLC Control SMT Production Line
SMT PCB Dual Magazine Unloader PLC Control SMT Production Line
Semiconductor,production line board board device/ Dual Magazine Unloader
Product characteristics
1, Top board device of SMT production line circuit board.
2, PLC control, color HMl operation system.
3, Stepping motor push plate structure, pushing plate speed is adjustable.
4, Auxiliary positioning braking system, accurate positioning, fast lifting speed and highproduction efficiency.
5, PLC control system, multiple electrical circuit protection design which are security and stability.
6, Sound and light alarm system, abnormal information text prompts, easy operation andmaintenance.
7, Standard SMEMA signal communication.
8, Standard multiple pickup modes.
Product Technical Parameters
1, No.of magazine:Upperconveyor:1nos.Lowerconveyor:1nos.
2, Time for feed PCBs:Approx.6seconds orspecified by customer.
3, Magazine change over time:Approx.35 seconds or specified by customer.
4, Indexing pitch:10,20,30,40mm pitch orspecified by customer.
5, Powersupply and electric load:220V(AC,SP)800V/Amax.
6, Air pressure and airflow:4-6bar,Up to 0.2/min.
7, Thickness of PBCs:0.6mm min.

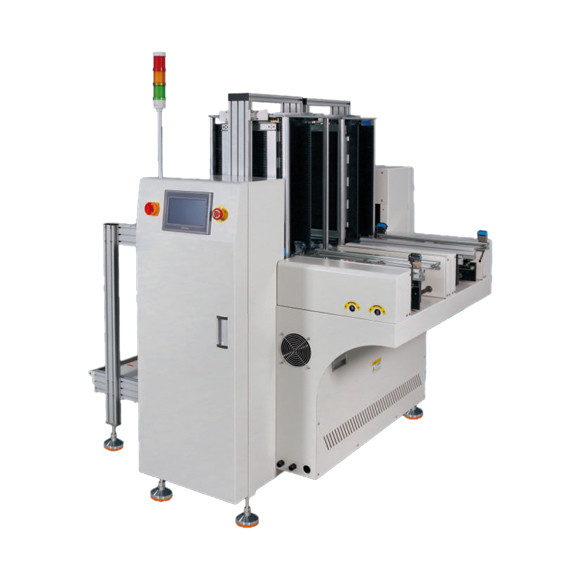

Product picture
