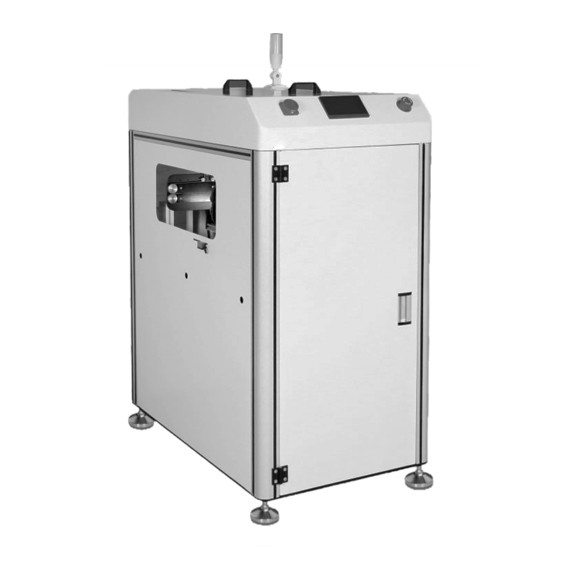

Name: Closed PCB Inverting Conveyor 220V 150V Stop Plate Mode Using Rail Clamp
Brand: Shenzhen Jingji Technology Co., Ltd.
SKU: CHT-CIV-600H
Availability: InStock

Product Details

Place of Origin: Shen Zhen China

Brand Name: jingji

Certification: ISO

Model Number: CHT-CIV-600H

Payment & Shipping Terms

Minimum Order Quantity: 5sets

Price: Negotiation

Packaging Details: Accessories packed separately

Delivery Time: 15-25 woring days after received the deposit(The actual lead time according to the quantity)

Payment Terms: T/T

Supply Ability: 1000sets per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Closed PCB Inverting Conveyor, PCB Inverting Conveyor 220V


PCB Size (L*W):	80x50-510x350mm	PCB Direction:	L-R/R-L
PCB Hight:	900±20mm	PCB Time:	8-15S/pcs
Air Supply:	4-6Kgf/cm*	Weight:	205Kg
Boundary Dimension (LVH):	605x990x1250mm

PCB Size (L*W):	80x50-510x350mm
PCB Direction:	L-R/R-L
PCB Hight:	900±20mm
PCB Time:	8-15S/pcs
Air Supply:	4-6Kgf/cm*
Weight:	205Kg
Boundary Dimension (LVH):	605x990x1250mm

Closed PCB Inverting Conveyor 220V 150V Stop Plate Mode Using Rail Clamp

Semiconductor,production line board board device/Inverting Conveyor

Product characteristics

1, Closed design of the turnover mechanism guarantees the highest level of safety protection.

2, Stop plate mode, using rail clamp.

3, PLC control system, color touch screen operation interface.

4, Balanced, accurate flip mode, assisted in maintaining the positioning structure.

5, Plate mode after flip, reducing cycle time.

6, Compatible SMEMA Communication.

Product Technical Parameters

1, Cycle time:About 8 Seconds

2, Power supply and electricload:220V(AC,SP)150V/Amax

3, Board thickness:Min.0.6mm

Closed PCB Inverting Conveyor 220V 150V Stop Plate Mode Using Rail Clamp 0

Closed PCB Inverting Conveyor 220V 150V Stop Plate Mode Using Rail Clamp 1
