Highlight:
SMT PCB Conveyor Single Phase
, Automatic SMT PCB Conveyor
, Automatic PCB Inspection Conveyor
PCB Size: |
CHT-350: 80*50-510*350mm CHT-460: 80*50-510*460mm |
PCB Direction Of Transfer: |
L-R/R-L |
PCB Transport Height: |
900±20mm |
Weight: |
CHT-350:50-130KG CHT-460:65-170KG CHT-D280:70-145KG |
Boundaty Dimension(L*W*H): |
CHT-350:(L: 500-2500)*775*1800 CHT-460:(L: 500-2500)*885*1800 CHT-D280:(L: 500-2500)*1135*1800 |

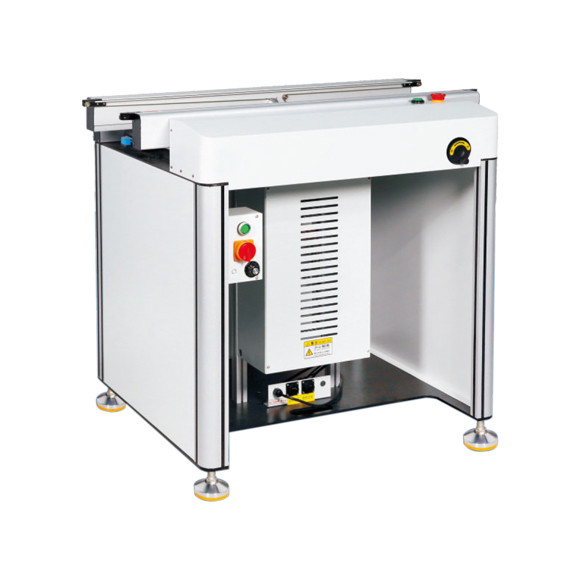

Automatic SMT PCB Conveyor Single Phase 220V AC Up To 300V AC Inspection Conveyor
Conveyor/Inspection Conveyor
Description:
This machine is used for connecting SMT equipment to each other or for operator inspection.
Features:
1. On the basis of the conveyor with movable work tables, document display boards, lighting racks
2. Lighting brightness, working height, etc. are humanized design, work more efficient, convenient and practical.
3. Adopting green flat imported antistatic transmission belt, durable and easy to replace
4. Sheet metal weighted structure, making the overall stability, not easy to shift
5. Individually mounted guide extensions at rail entrances and exits for easy adjustment and replacement
6. Uses standard SMEMA signaling communications
Technical Parameters :
1. Conveying speed: 0.5-20m/min or specified by customer.
2. Power supply and electric load: single-phase 220V AC up to 300V AC
3. Board thickness: minimum:0.6mm
Optional Features:
1. Two-segment transmission or multiple-segment transmission (minimum length of each segment 0.5 m), two independent adjustable widths.
2. Installation of cooling fans, blocking cylinders, shelves, dust covers and other additional equipment
3. Special program requirements such as inspection function with scanner, NG/OK communication function with AOI, etc.
4. Selectable transfer speeds: 50-250mm, 50-350mm, 50-460mm, 50-510mm
