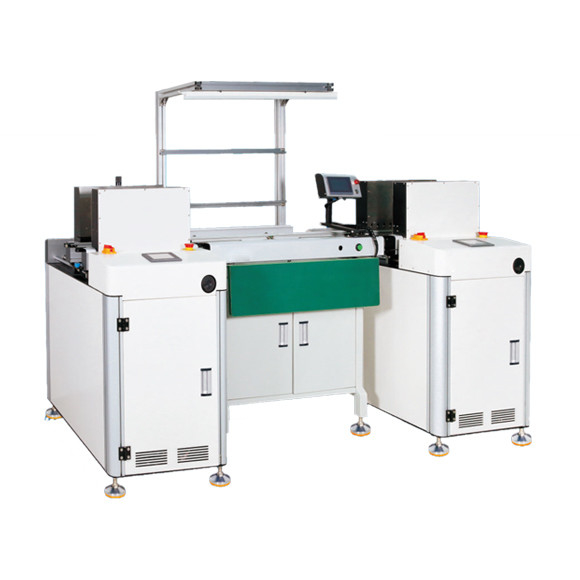

Name: CHT-CVP-600LD Automated Production Lines Destacker Bare Board Loader
Brand: Shenzhen Jingji Technology Co., Ltd.
SKU: CHT-CVP-600LD
Availability: InStock

Product Details

Place of Origin: China

Model Number: CHT-CVP-600LD

Payment & Shipping Terms

Minimum Order Quantity: NEGOTIATION

Price: NEGOTIATION

Packaging Details: NEGOTIATION

Delivery Time: 20 work days

Payment Terms: T/T

Supply Ability: 10per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Automated Production Lines Destacker, Automated Production Lines Loader, Automated Bare Board Loader


PCB Size:	CHT-350: 8050-510350mm CHT-460: 8050-510460mm	PCB Direction Of Transfer:	L-R/R-L
PCB Transport Height:	900±20mm	Weight:	CHT-350:195KG CHT-460:205KG
Boundaty Dimension(LWH):	CHT-350:6007901170mm CHT-460:6009001170mm

PCB Size:	CHT-350: 8050-510350mm CHT-460: 8050-510460mm
PCB Direction Of Transfer:	L-R/R-L
PCB Transport Height:	900±20mm
Weight:	CHT-350:195KG CHT-460:205KG
Boundaty Dimension(LWH):	CHT-350:6007901170mm CHT-460:6009001170mm

CHT-CVP-600LD Automated Production Lines Destacker Bare Board Loader

Conveyor/Inspection Conveyor

Description:

This machine is used for automatic board operation for light boards.

Features:

1. PLC automatic control, Fuji button operation

2. Straight-through and drop-plate operating modes available

3. Use titanium steel push plate blade, strong elasticity, not easy to deformation

4. Sheet metal weighted structure, making the overall stability, not easy to shift

6. Uses standard SMEMA signaling communications

Technical Parameters :

1. Time for feed PCBs: Approx.6 seconds or specified by customer.

2. Board maximum capacity: 200pcs(0.6mm thick PCB)

3. Power supply and electric load: single-phase 220V AC up to 3150V AC

4. Board thickness: minimum:0.6mm

5. air pressure and air flow: 4-6bar, up to 30L/min
