Name: Automated Cache The Cache Machine Automatically Feed Circuit Boards
Brand: Shenzhen Jingji Technology Co., Ltd.
SKU: CHT-CBL-400S
Availability: InStock

Product Details

Place of Origin: China

Model Number: CHT-CBL-400S

Payment & Shipping Terms

Minimum Order Quantity: NEGOTIATION

Price: NEGOTIATION

Packaging Details: NEGOTIATION

Delivery Time: 20 work days

Payment Terms: T/T

Supply Ability: 10per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Automated Cache Machine, Circuit Boards Cache Machine


PCB Size:	CHT-350:8050-510350mm CHT-460:8050-510460mm	PCB Direction Of Transfer:	L-R/R-L
PCB Transport Height:	900±20mm	Weight:	CHT-350:245KG CHT-460:265kg
Boundaty Dimension(LWH):	CHT-350:6009501860mm CHT-460:60010601860mm	Air Supply:	4-6kgf/cm²

PCB Size:	CHT-350:8050-510350mm CHT-460:8050-510460mm
PCB Direction Of Transfer:	L-R/R-L
PCB Transport Height:	900±20mm
Weight:	CHT-350:245KG CHT-460:265kg
Boundaty Dimension(LWH):	CHT-350:6009501860mm CHT-460:60010601860mm
Air Supply:	4-6kgf/cm²

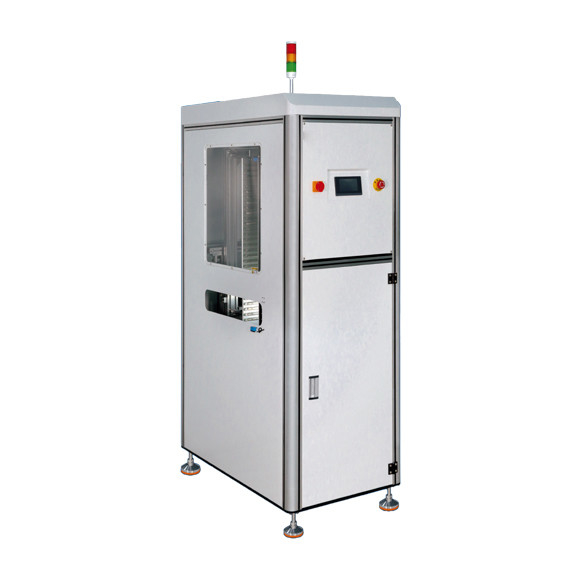

Automated Cache The Cache Machine Automatically Feed Circuit Boards

Semiconductor Upper Plate Collector

Description:

This machine is used to automatically feed circuit boards to and from the production line.

Features:

1. Human-machine interface control operation, function switching, simple and easier to understand

2. PLC control system, multiple electrical circuit protection design, safety and stability

3. The staging area has 30 pitches available for stops

4. Auxiliary positioning brake system, precise positioning, fast lifting speed, high productivity

5. Integrated multiple functions, first-in, first-out, advanced-last-out, and direct-through

6. Uses standard SMEMA signaling communications

Technical Parameters :

1. Board capacity: 30pcs or specified by customer

2. Maximum load: 1.5kg/PCB

3. Cycle time: about 12s

4. step selection: 20,40mm or specified by customer

5. Power supply and electric load:220V(AC),850 VA (SP)max

7. thickness of PCBs:0.6mm min

Tags:

SMT Dual Register Machine,

Automatic Loading Machine,

video

SMT Cache The Cache Machine With PLC Control System Standard SMEMA Signalcommunication
