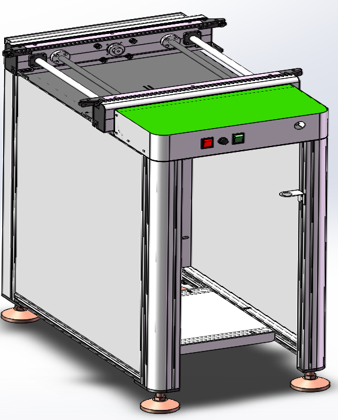

Product Description:
The SMT PCB Conveyor is a versatile and efficient solution for the transportation of printed circuit boards during the surface mounting process. With its 5MM flat belt design, this conveyor ensures smooth and reliable movement of PCBs on the assembly line.
Featuring a flexible direction configuration of L-R or R-L, the SMT PCB Conveyor offers the convenience of adapting to different production layouts and requirements. This flexibility enables seamless integration into various assembly line setups, enhancing overall workflow efficiency.
Users have the option to select the conveyor direction according to their specific needs, whether it be left to right or right to left. This customizable feature provides adaptability and convenience, catering to a wide range of manufacturing environments and processes.
Equipped with a high-quality lighting system, the SMT PCB Conveyor ensures optimal visibility during the assembly process. The 40*40 aluminum bracket combined with LED lights illuminates the working area, facilitating accurate component placement and inspection.
For enhanced protection and cleanliness, the SMT PCB Conveyor offers the choice between an ESD dust cover and a common acrylic sheet metal dust cover. This optional feature helps to prevent dust accumulation on the PCBs, ensuring product quality and reliability.
In summary, the SMT PCB Conveyor is a top-of-the-line solution for surface mount device board transportation. Its efficient 5MM flat belt, flexible direction options, customizable conveyor direction, advanced lighting system, and dust cover choices make it an indispensable tool for SMT printed circuit board assembly processes.
Features:
-
Product Name: SMT PCB Conveyor
-
Weight: According To The Customer's Production Line
-
Conveyor Height: 900±20mm (or user specified)
-
Lighting System: 40*40 aluminum bracket + LED light (option)
-
Height: 900±20mm
-
Effective Size of Line Board: 50*50~590*510
Technical Parameters:
|
Size
|
80*50-510*350mm
|
|
Belt Type
|
5MM flat belt
|
|
Main Functions
|
Used for bridge connection between SMT production line equipment, three photoelectric sensors
|
|
Dust Cover
|
ESD dust cover and common acrylic sheet metal dust cover (option)
|
|
Power Supply
|
110V or 220V AC, single-phase
|
|
Lighting System
|
40*40 aluminum bracket + LED light (option)
|
|
Weight
|
According To The Customer's Production Line
|
|
Control System
|
MCU control (Panasonic PLC optional)
|
|
Direction
|
L-R/R-L
|
|
Conveyor Height
|
900±20mm (or user specified)
|
Applications:
The
jingji
SMT PCB Conveyor, model number
CHT-CWUD-303SX
, is a versatile and efficient conveyor system designed for the smooth transportation of circuit boards in various production scenarios. With
ISO certification
and originating from Shen Zhen, China, this conveyor system is known for its reliability and high performance.
Whether you are assembling PCBs in a large-scale manufacturing facility or a smaller workshop, the
jingji SMT PCB Conveyor
is ideal for a wide range of product application occasions and scenarios. Its main functions include being a
Circuit Board Conveying Machine
and a
PCB Assembly Line Conveyor
, making it an essential component in the electronics manufacturing process.
With a
minimum order quantity of 5 sets
and
negotiable pricing
, this conveyor system offers flexibility for businesses of all sizes. Payment terms are
T/T
, and the
supply ability is 1000 sets per day
, ensuring quick availability for your production needs.
The
delivery time
for the SMT PCB Conveyor is typically
15-25 working days after receiving the deposit
, with the actual lead time varying according to the quantity ordered. The
packaging details
include accessories packed separately for convenience and protection during transportation.
Equipped with a
power supply of 110V or 220V AC, single-phase
, the conveyor system is adaptable to different electrical settings. The
control system
features MCU control, with the option for a Panasonic PLC for added functionality.
Weighing according to the customer's production line requirements, the SMT PCB Conveyor is designed for ease of use and efficiency. The lighting system, consisting of a 40*40 aluminum bracket and LED lights (optional), ensures proper illumination for clear visibility during operation.
Support and Services:
The Product Technical Support and Services for the SMT PCB Conveyor product include:
- Installation assistance
- Training for operators
- Troubleshooting and maintenance guidance
- Software updates and upgrades
- Warranty services
Packing and Shipping:
Product Packaging:
The SMT PCB Conveyor is carefully packaged in a sturdy cardboard box to ensure safe transportation. The product is surrounded by protective padding to prevent any damage during shipping.
Shipping:
Our shipping process involves securely sealing the package and affixing the necessary labels for identification and tracking. We partner with reliable courier services to deliver the SMT PCB Conveyor to your specified address in a timely manner.
FAQ:
Q: What is the brand name of this SMT PCB Conveyor?
A: The brand name is jingji.
Q: What is the model number of this SMT PCB Conveyor?
A: The model number is CHT-CWUD-303SX.
Q: Where is the place of origin for this SMT PCB Conveyor?
A: The place of origin is Shen Zhen, China.
Q: What is the minimum order quantity for this SMT PCB Conveyor?
A: The minimum order quantity is 5 sets.
Q: What are the payment terms accepted for this SMT PCB Conveyor?
A: The accepted payment terms are T/T.
