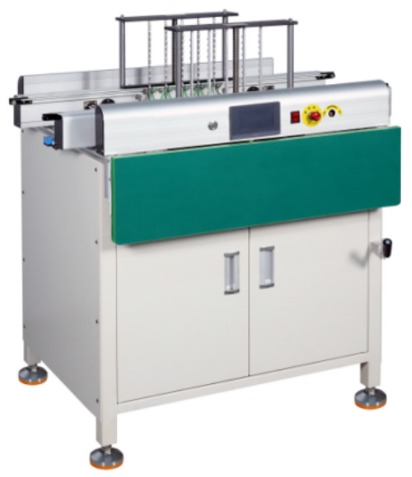

Name: Dual-Track PCB Conveyor 80-510mm Adjustable Width SMT Transfer Machine
Brand: Shenzhen Jingji Technology Co., Ltd.
SKU: CHT-CMV-1200H
Availability: InStock

Product Details

Model Number: CHT-CMV-1200H

Payment & Shipping Terms

Minimum Order Quantity: negotiation

Packaging Details: negotion

Delivery Time: 8 work days

Payment Terms: T/T

Supply Ability: 5 per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                adjustable width SMT conveyor, dual-track PCB transfer machine, SMT conveyor with warranty


Size:	8050-510350mm	Direction:	L-R/R-L
Hight:	900±20mm	Weight:	According To The Customer's Production Line

Size:	8050-510350mm
Direction:	L-R/R-L
Hight:	900±20mm
Weight:	According To The Customer's Production Line

Dual-Track PCB Conveyor 80-510mm Adjustable Width SMT Transfer Machine

0.8 Dual-track Screening Machine (Model: CHT-DSX-800) MES System & System Adjustment Wide & Narrow

Product Attributes

Attribute	Value
Size	8050-510350mm
Direction	L-R/R-L
Height	900±20mm
Weight	According to the customer's production line

Product Description

2.7 meters double track transfer machine

Main Functions

For two single-track printing press line panning into the double-track SPI or mounter track
Transfer platform for 2 sets, two sets of mobile, each set of panning table panning stroke of 700mm
Out of the plate outlet track distribution size of 1.4 rails are fixed

Technical Parameters and Specifications

Control system Panasonic PLC

Man-machine interface 7-inch display control color touch screen

Sensor Far Hang long spot background suppression sensor

PCB transport motor Starfire 42 stepping motor transmission

Transport trolley panning motor 60-type closed-loop green-blue stepping motor

Panning guide Taiwan Shangyin Linear Guide Rail

Transport trolley adjust width Manually adjusted width

Widening silk rod Ball screws

Transportation number of trolleys 1

Panning beat 12 seconds

PCB thickness Minimum 0.6mm

Effective size of PCB 50*50~590*510

Weight of PCBC Less than 2KG

Transmission height 900±30

Power supply Taiwan Mingwei

Power supply and electrical load 220V AC, single phase max. 700W

External dimensions (L*W*H) 600*2700*1200

Approximate weight 150KG
